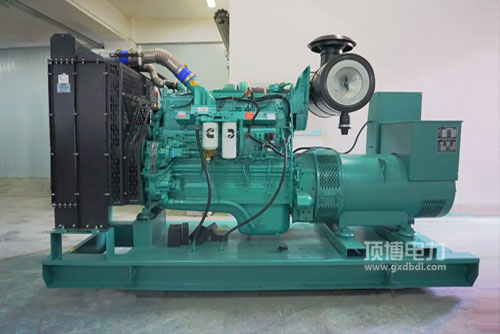

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用热车机燃料经济发展性好: 现代化的燃料调控自动控制性，独具特色的STC、ESTC 分级分类调控自动控制性，特别规划的柱塞顶部复燃室，高压电噴射燃料，积极吸雾，复燃积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用打火机瞬态耐磨性表现出色: 圆满的打火机整体结构来设计，协助康明斯特色的EFC软件，抑制精密度提高，死机事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用打着机升功效高: 产品来设计紧凑型suv.内部结构摆放合情合理，正常运作稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50充分满足国内非通道最后阶段性及南美Tier2. Tier 3排放出标准特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件能得性好， 启思想自动运行及保障养生保健便民，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数区域 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯带发电用起驱力的基本特征：占地小， 压缩的比低， 集水管环境进行加热，有利启动服务器，转移车机电源模块的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机机型	惯用最大功率(kW)Prime Power	自备最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
